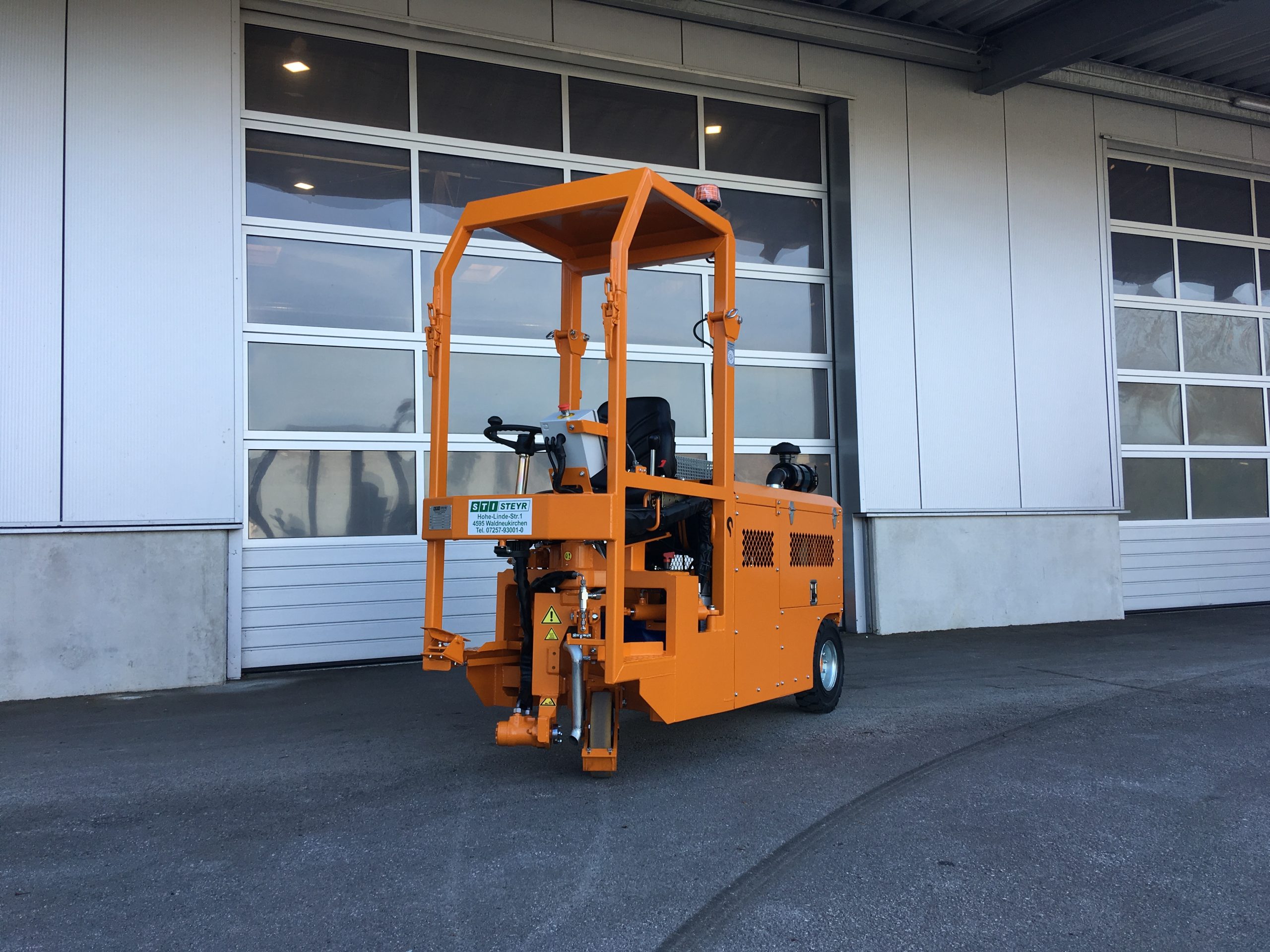

Milling Machine FFM-18

Technical data

(self-propelled Milling Machine)

· deadweight: 1550 kg
· length: 2200 mm
· width: 1000 mm
· height: 2200 mm

Construction

  • sturdy steel construction
  • solid rubber wheels
  • hydraulic self-propelled drive up to 7 km/ h
  • hydraulic power steering
  • folding roll bar with loading lug
  • main control unit in operating area
  • ergonomic driver seat
  • orange safety flashing lights

Drive

  • robust 3 – cylinder KUBOTA diesel engine, water-cooled
  • electric starter with battery
  • 40 l diesel tank
  • 18,5 kW at 3000 rpm

Hydraulic System

  • directly powered hydraulic pumps
  • hydraulic drive, milling drive, milling lowering and steering system
  • hydraulic suction (optional)
  • hydraulic tank with return flow filter and breather filter

Milling Installation

  • milling disc diameter 160 mm (directly driven via hydro motor)
  • milling width approx. 15 mm
  • max. milling depth 25 mm
  • equipped with an automatic blowout system or suction unit

Options

  • hydraulic driven suction unit with cyclone and dry dust filter (collecting container capacity: 20 l)
  • LED – work light
  • milling disc diameter 180 mm
  • fire extinguisher
  • special painting in RAL colours
  • foldable driver seat
  • side milling device
